BEL CANTO DESIGN e.One REF601M Specifications:

Power Output 1% THD: 600W 4 ohms, 300W 8 ohms

Minimum Load: 2 ohms

Peak Output Current: 27 amperes

Frequency Response: +/-3 dB 0Hz-50KHz, all loads

THD+N: 0.003% 1W, 1KHz, 4 ohms

IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms

Output noise: 35uVRMS A-weighted 10Hz-20KHz

Voltage gain: 27dB (internal switch select for 33dB)

Damping factor: >1000

Output Impedance at 100Hz: <8 milliohms

Dynamic Range: 121dB

Input Voltage for Max Output: 2.3Vrms at 27dB gain

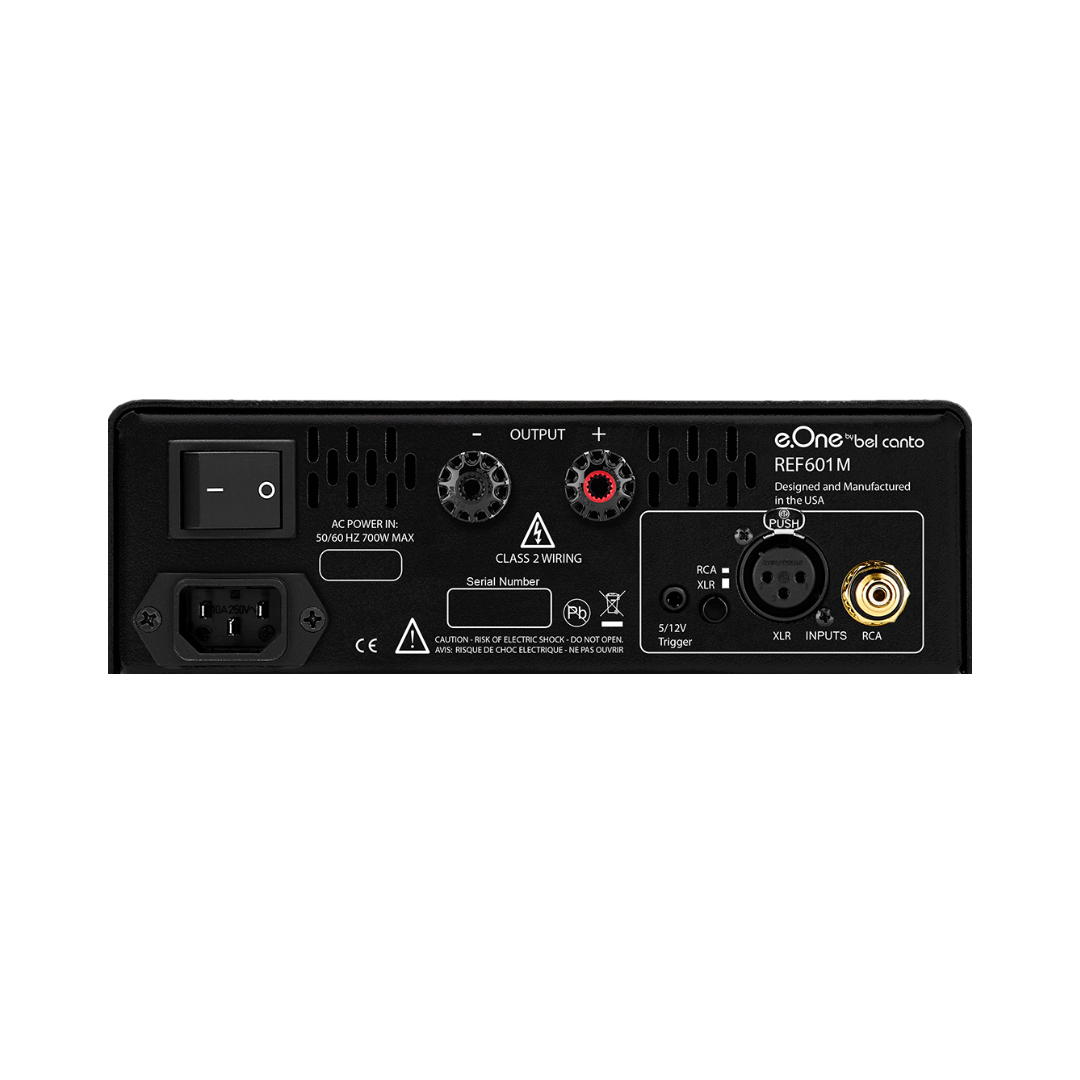

Input connections: Single-ended RCA or balanced XLR

RCA input impedance: 100Kohms

Balanced input impedance: 200Kohms

Output connections: 1-set WBT Nextgen 5-way binding posts

Power On usage: 22W

Power Off usage: 0.0W

Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz

Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)

Weight: 15 lbs, 7 Kg

Features:

The Bel Canto Impedance Optimized Input Stage is a balanced high Common Mode Rejection, low output impedance driver that is critical to the amplifier’s performance, ensuring that the refined dynamic qualities of the recording are preserved.

WBT NextGen Speaker Connectors The WBT NextGen connectors provide the best possible connection from the amplifier to the speaker cables. We choose them because they impart minimal sonic signature to the sound, remaining open and grain-free up throughout the audio frequency band.

WBT NextGen Speaker Connectors

The WBT NextGen connectors provide the best possible connection from the amplifier to the speaker cables. We choose them because they impart minimal sonic signature to the sound, remaining open and grain-free up throughout the audio frequency band.
