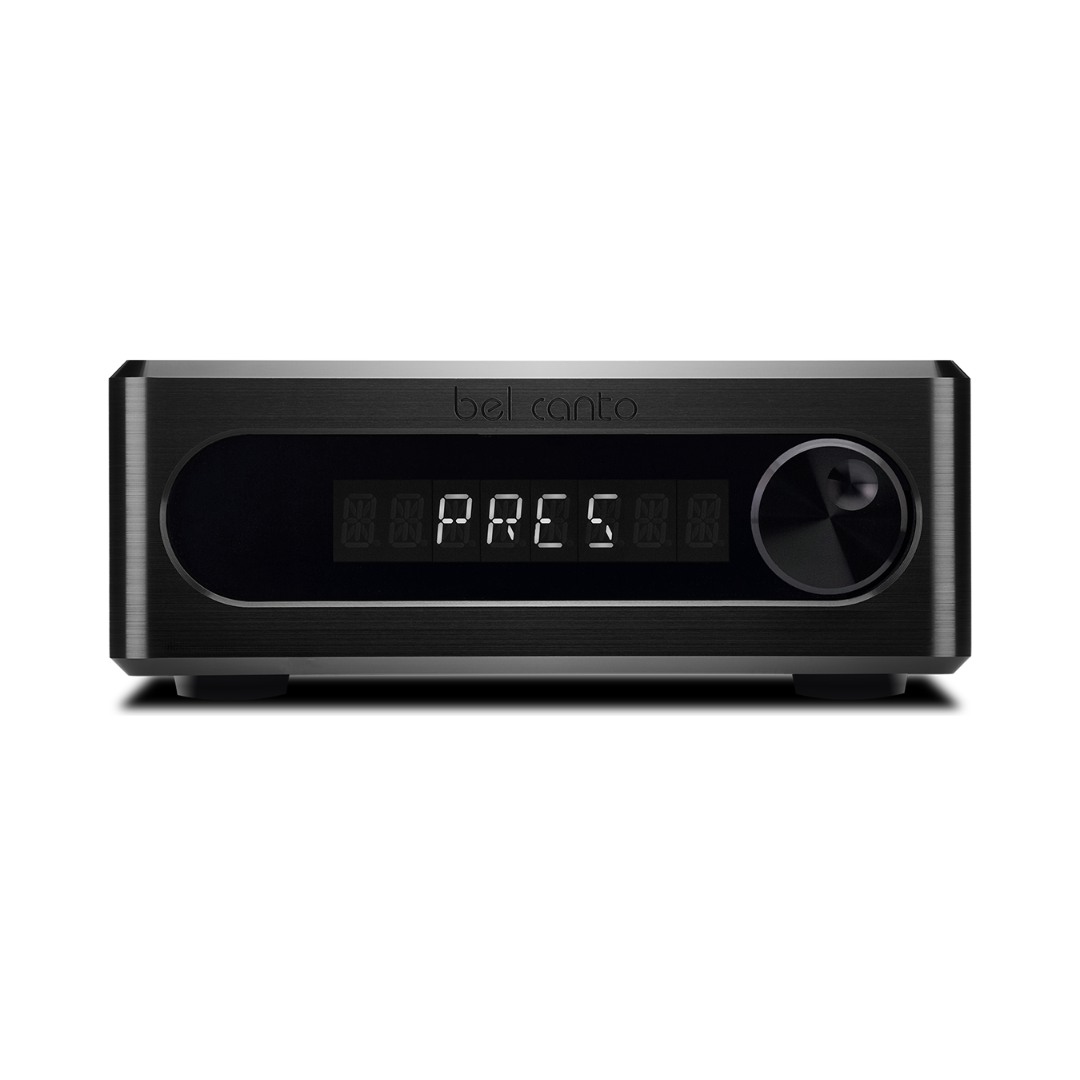

Bel Canto Design e.One Pre5 Preamplifier
BEL CANTO DESIGN e.One Pre5 Preamplifier
The e.One Pre5 Preamplifier offers dynamic, low-noise performance through a fully balanced analog design. Its precision circuitry, high-quality XLR/RCA inputs, and independently buffered outputs deliver a clean, faithful signal to your amplifier in a compact, high-performance chassis.
The e.One Pre5 is a highly dynamic fully balanced analog preamplifier. The precise circuitry and compact balanced architecture deliver a pure signal to your amplifier revealing the detail and natural tone of the finest recordings.
-
Fully Balanced Internal Architecture for Lowest Noise and Distortion
-
XLR and 4 High Quality RCA Inputs
-
Independently Buffered XLR and RCA Outputs
-
Remote Control
-
Available in Silver or Black Faceplate
Description
BEL CANTO DESIGN e.One Pre5 Specifications:
Balanced Input Impedance: 10k Ohms
Single-ended Line Input Impedance: 50k Ohms
Maximum Input Level Balanced: 5Vrms
Maximum Input Level Single Ended: 2.5Vrms
Maximum Output Level, RCA and XLR 5Vrms
Distortion at 1Vrms Output: <0.002% 1KHz
Dynamic Range: 125dB A-Weighted re: 5Vrms
Single-ended Line Out Impedance: 50 Ohms
Balanced Output Impedance: 100 Ohms
General

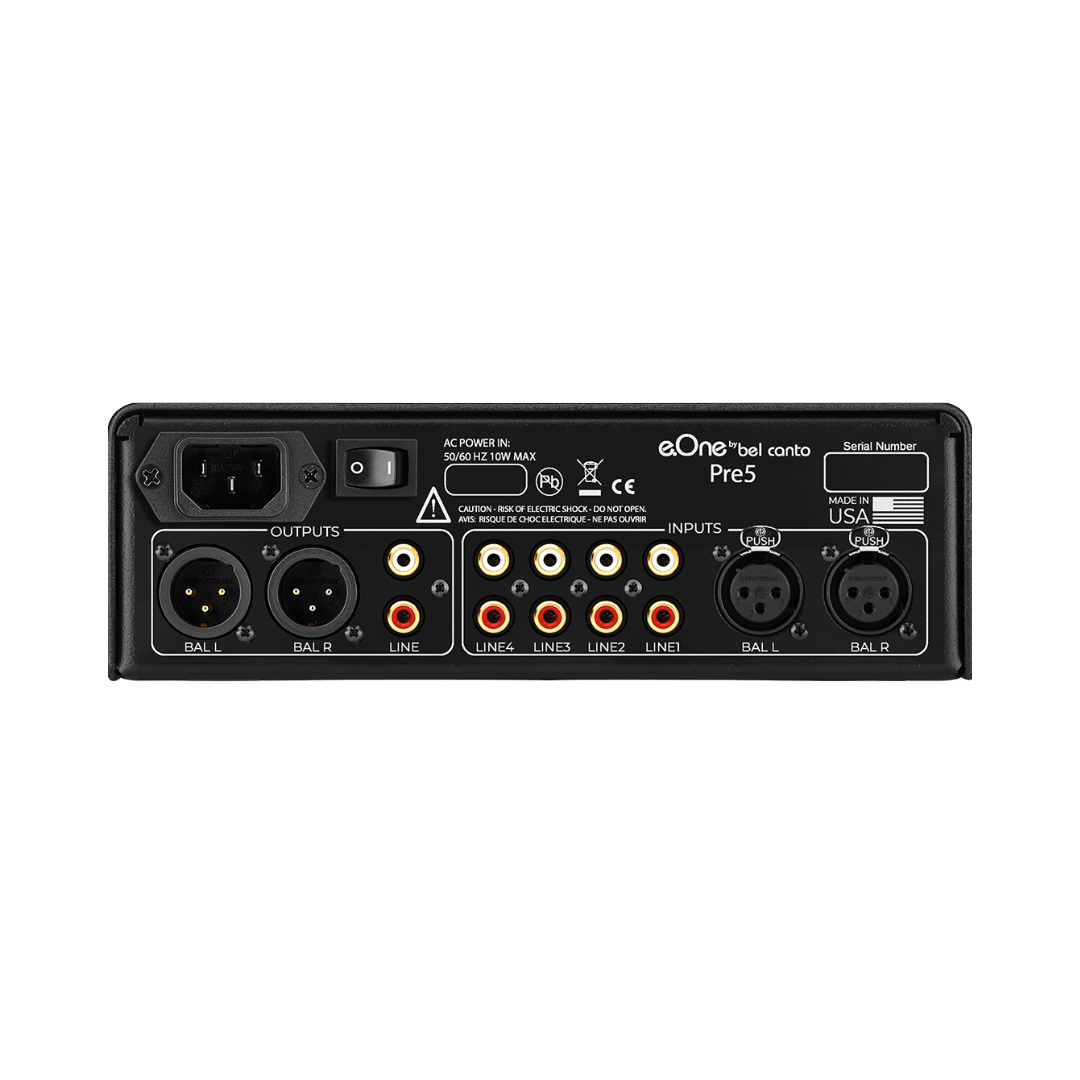

Output Connections: XLR and RCA Outputs
Power Usage On: 4W
Power Usage Off: 0.0W
Power Input: 100-120VAC, 220-240VAC 50/60 Hz
Fuse
Littlefuse 214 Series, 3 ampere, time-lag, 250VAC, 5x20mm ceramic body fuse
Dimensions
8.5″ W x 12″ D x 3.5″ H (216 mm x 305 mm x 88 mm)
Weight: 13lbs. (6.5 kg)
Additional information
| Colour: | Black, Silver |
|---|
